Brand Name : CSCE
Model Number : DIP-388R141012-NBJ
Certification : RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
Place of Origin : Shenzhen , China
MOQ : 500pcs
Price : Negotiable
Payment Terms : L/C, D/A, D/P, T/T, , Western Union, MoneyGram
Supply Ability : 150K pcs/day
Delivery Time : 7-10 days
Packaging Details : Tray in Carton
Gender : Female
name : RJ45 90 Degree Adapter
Application : Networking
Material : PBT (UV94V-0)
Voltage rating : 125V
Pin : 8pin
LCP Single Port RJ45 Modular Jack Connector 90 Degrees With Leds Yellow/Green |
Product Details:
Specification: | RJ45 modular Jack | Cross Part NO: | DIP-388R141012-NBJ |
Latch: | Tab up | Samples: | Available 2-3 Pcs |
Product Specification:
Part Number | DIP-388R141012-NBJ | Brand | CSCE/OEM/ODM |
Product Type | RJ45 Modular | Connector Style | Jack |
Jack Type | RJ45 | Connector Type | Modular Jack |
Latch Style | Standard | Latch | up |
Shielded | Metal shielded | Applies To | Printed Circuit Board |
Performance Speed | 10/100/1000 BASE-TX | Grounding Options | Panel Ground and PCB Ground |
Port Configuration | Single port | Number of Positions | 8 |
Jack Configuration | 1 x 1 | Terminals per Port | 8 |
Contact Mating Area Plating Material | Gold | Contact Base Material | Phosphor Bronze |
Solder Tail Contact Plating Material | Tin-Lead over Nickel | PCB Mounting Style | Through Hole |
Housing Material | PBT Polyester | Housing Color | Black |
Housing Material Temperature | Standard | UL Flammability Rating | UL 94V-0 |
Competitive Advantage
14 years production experience,
3000 staff,
100% test
Flexible delivery time
Our Services
1. Factory price
• Own production workers, production equipment and engineering technology team
• New original with low and discount price
2. Safe & Quality Reliability
• Quality insurance system for superb product quality
• On Time, Every Time provision of Quality Components.
3. Customer Friendly Services
• Support in many Languages website, more convenience & fast services.
Features:
1. All materials comply with ROHS
2. High-wearing feature
3. OEM & ODM are both available.
4. Quality Assurance, 36 months warranty.
5. Riveting machine was invented by us.
6. We do lots of research and development in these area, if you meet any difficulties, feel free to contact us.
• ISO 9001:2008
• UL Certification
• Active Environmental Policy

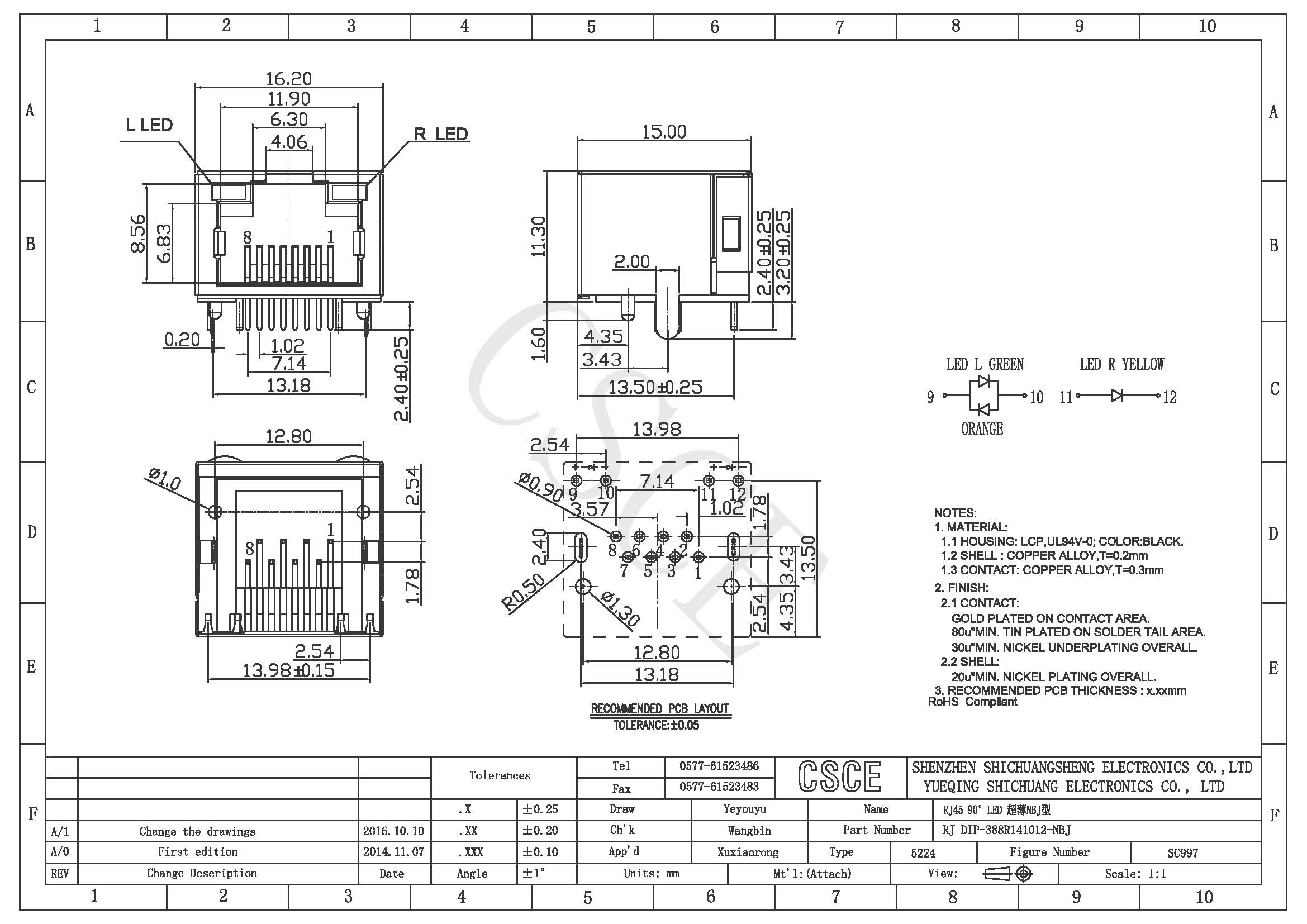

Product Drawing:
![]() |
