| Multi Color RJ45 Jack 8P8C 100 Base - T Flat Pin Contact Material Phosphor Bronze |
Product Details:
| Voltage rating | 125 VAC RMS |
| Current rating | 1.5 AMP |
| Contact resistance | 30 Milliohms max |
| Insulation resistance | 500 Megohms min @ 500 VDC |
| Dielectric strength | 1000 VAC rms 50Hz or 60Hz,1min |
| Insert material | UL94V-0 |
| Contact material | Phosphor bronze T=0.35mm |
| Plating | Contact area-selective gold plating |
| Mating force | 2.2KG.F max |
| Retention strength | 7.7KG.F min between jack and plug |
| Operation life | 600 Cycles min |
| Storage Temperature | ﹣40℃ to +85℃ |
| Operation Temperature | ﹣40℃ to +85℃ |
Product Specification:
| Specification: | RJ45 Single Port | Cross Part NO: | 57B-18821X01 |
| Mounting: | Thru-hole R/A | Samples: | Available 2-3 Pcs |
Competitive prices and services:
More competitive prices than pulsed Tico halos and aphorol
Delivery time: 2-3 weeks after order
Samples provided free of charge
New designs to meet customer requirements
DHL UPS DEDEX or TNT reduces shipping costs by 90%
Why choose us:
- Equipment and manufacturing ability for mould
- Competitive price , and in time delivery well-selling in both domestic and foreign markets
- Acquired the ISO9001-2000 quality management system certification , ISO14001 environmental management system and UL certification .
- Specializes in the development , design , production and sale of communication network connectors .
Product application:
Free for network and communication device sas HUB, PC card, switch, router, PC board, SDH, PDH, IP phone, x DSL modem, call center solution, call set-top box, VOIP gateway, setup protocol gateway, fast Ethernet switch .

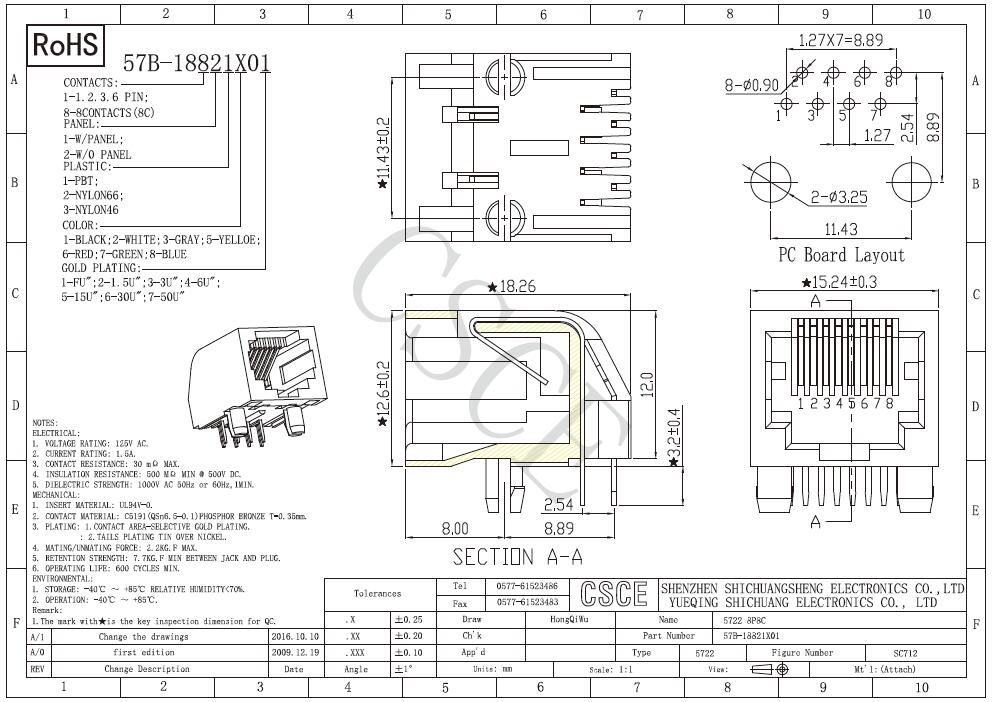

Product Drawing:
Product Tags:
|
|
Multi Color 8P8C RJ45 Single Port 100 Base - T Flat Pin Contact Material Phosphor Bronze Images
|
