3.5*6mm Tact Switch Smd 2 Pin Input Output Connectors Keypad Natural Color

Product Categories
SHENZHEN CSCE ELECTRONIC CO.,LTD
Contact Now

3.5*6mm Tact Switch Smd 2 Pin Input Output Connectors Keypad Natural Color

  • 1
  • 2
  • 3

Brand Name : CSCE

Model Number : SC-TS-3x6x2

Certification : RoHS/CE/UL/FCC/CE/ISO9001/ISO14001

Place of Origin : Shenzhen,China

MOQ : 500pcs

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 150K pcs/day

Delivery Time : 7-10 days

Packaging Details : Tray in Carton

Contact Resistance : ≤0.03mΩ

Manufacturer : Original Manufacturer

Operating Force : 1.8N-2.8N

Voltage withstand : AC250V 50Hz/min

Part Type : SMD Switch

Rating  : DC12V 50mA

Operation Temp : -20℃ ~ +70℃

Certificate : ISO9001/CE/ROHS/REACH/MSDS/SGS

Contact Now

3.5*6mm tact switch smd 2Pin Input Output Connectors keypad natural color

Competitive Price And Service


• More Competitive Price Than Pulse Tyco Halo And Amphenol
• Delivery Time:2-3 Weeks After Orders
• Free Samples Are Available
• Provide New Design For Customer Requirements
• 90% Off Shipping Cost By DHL UPS DEDEX Or TNT

Product Description:

Part Number SC-TS-B003
Part Type SMD Switch
Rating DC12V 50mA
Manufacturer Original Manufacturer
Contact Resistance ≤0.03mΩ
Operation Temp ‘-20℃ ~ +70℃
Electrical Life 100,000 Cycles Min
Operating Force 1.8N-2.8N
Dielectric Strength AC250V(50/60Hz for 1minute)
Enviroment humidity -25-+70°C
Relative humidity (40°C)≤95%
Insulation Resistance ≥100mΩ
Voltage withstand AC250V 50Hz/min
Push knorb height size Can be choosed H=1.5/3.0/3.5/4.0/4.3/4.5/5.0mm
Welding Conditions Hand Soldering 350℃ Max 3s Max
Condition for Reflow 260℃Max 5s Max
Welding time(seconds) 3S
Welding capacity 60W max
Dielectirc Voltage Proof 250V AC (50HZ/60HZ) 1min

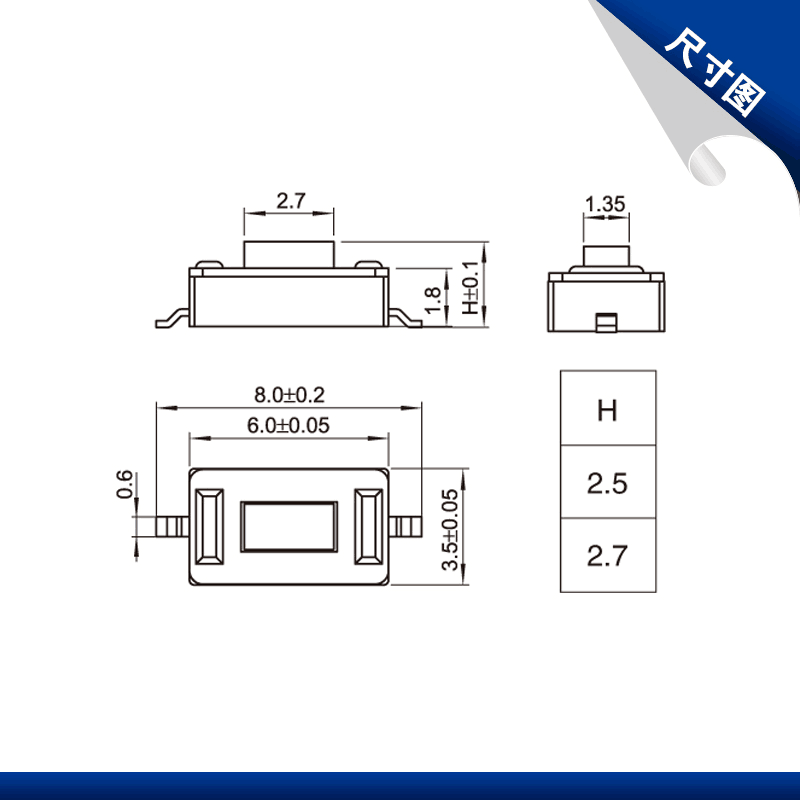

Product Drawing:

3.5*6mm Tact Switch Smd 2 Pin Input Output Connectors Keypad Natural Color

Main Customers

Hisense Skyworth FOXCONN JEZETEK TCL NEC
TENDA HUMAX PANASONIC HUAWEI CIG TwoWing

FAQ

*Q: Can I get samples from you?

A: We are honored to offer you samples for quality check.

*Q: What parts are manufactured by you?

A: All of frame parts are manufactured by us.

*Q: What's the leading time? (How long do you need to prepare my goods?)

A: 5 days for sample orders. 15 days for mass production orders (based on different quantities)

*Q: How long do I need to wait before my goods arrive?

A: 3-5 days for international express. 5-7 days for air transportation, 15-30 days for sea transportation.
