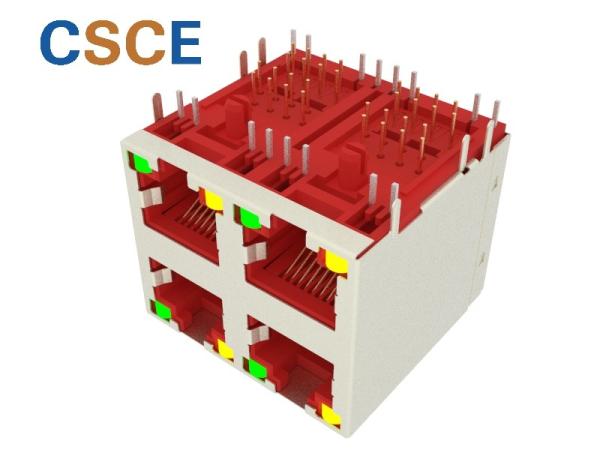

Metal Shielded 2x2 Stacked RJ45 Connectors / 4 Ports 8P8C Gigabit Ethernet RJ45 Jack

SHENZHEN CSCE ELECTRONIC CO.,LTD
Contact Now

Metal Shielded 2x2 Stacked RJ45 Connectors / 4 Ports 8P8C Gigabit Ethernet RJ45 Jack

Brand Name : CSCE

Model Number : 59B-32882111X01

Certification : RoHS/CE/UL/FCC/CE/ISO9001/ISO14001

Place of Origin : Shenzhen,China

MOQ : 500pcs

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 150K pcs/day

Delivery Time : 7-10 days

Packaging Details : Tray in Carton

Material : UL94-V0

Pin : 8

Keywords : rj45 connector

Connector type : RJ45

Contact material : phosphorous bronze

Product name : RJ45 Connector

Contact Now

Metal Shielded 2x2 Stacked 4 Ports 8P8C Gigabit Ethernet RJ45 Connector

Product Specification:

Specification: Stacked RJ45 Cross Part NO: 59B-32882111X01
Mounting: Thru-hole R/A Samples: Available 2-3 Pcs
Latch: Tab down Files: PDF/3D/ISG/Stp/Step/Datasheet

Product Details:

1. Current Rating 1.5A
2. Voltage Rating 125v
3. Contact Resistance 30milliohm Max
4. Withstand Voltage 1000V AC 50Hz or 60Hz,1MIN.
5. Insulation Resistance 500 MΩ MIN @ 500V DC.
6. Mating/Unmating Force 2.2KG.F MAX.
7. Retention Strength 7.7KG.F MIN Between Jack And Plug
8. Operating Life 750 Cycles MIN.
9. Operation Temperature -40℃ to +85℃
10. Storage Temperature -40℃ to +85℃
11. Housing Material UL94V-0
12. Contact Material Phosphor Bronze

FAQ

Q1: What is the Warranty for the goods?
A1: 1 year warranty.

Q2: Do you offer samples?
A2: Yes. However, buyer should responsibly for shipping cost.

Q3: Do you offer OEM service?
A3: Yes, Sure! Rich experience on printing logo on product and OEM package.

Q4: How many days I can get the goods after payment ?
A4: Usually, goods will be shipped within 3 days. By DHL will take about 3~5 days. So total will take about 4~8 days to arrive at your hands.

Q5: Could I get your Photos about the products without the watermark to my website?
A5: Of course, we could do this for you.

Our service:

1. More than 14 years experience in Connector industry, provide drawing or send sample to us, then we will send you our drawing or sample for you approval;

2. 100% tested before shipping out to guarantee the best quality;

3. OEM available

5. Fast delivery time, Best production capacity, Best price;

6. All your needed certificates we can provide;

7. ROHS compliant;

8. Small order are available.

Why Choose us


The company insists on the quality policy of "people-foremost,Customer-oriented. Continuous Improvement, lasting management ".And take the business theory of "take the market as the guidance, take the talented person as the cornerstone, take the technology as the core, take the quality as the life".To provide the best service for our customers.

We care about our valued customers and understand the concerns and frustrations you might have, and will try our best to resolve the issues.. We strive to answer all emails as quickly as possible, but due to high email volume it may take time for us to reply. Thanks in advance for your patience!

Contact us first before leaving a negative, we will find a solution to meet your requirement and enhance the satisfaction.

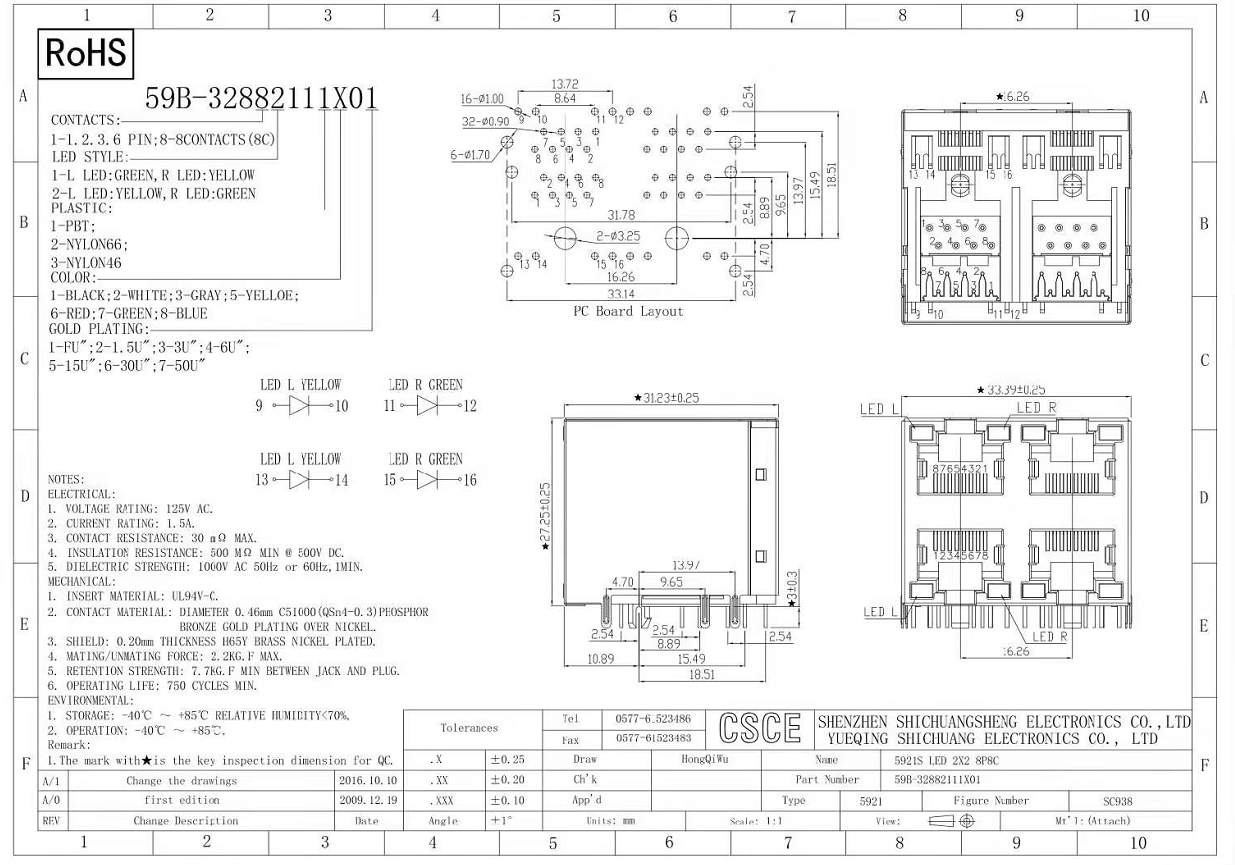

Product Drawing

Metal Shielded 2x2 Stacked RJ45 Connectors / 4 Ports 8P8C Gigabit Ethernet RJ45 Jack
