5225 Series PBT Unshielded 8P8C 1x5 Multiple Port RJ45 Connector Without Leds

Product Categories
SHENZHEN CSCE ELECTRONIC CO.,LTD
Contact Now

5225 Series PBT Unshielded 8P8C 1x5 Multiple Port RJ45 Connector Without Leds

Brand Name : CSCE

Model Number : 52B-588121X01

Certification : ISO9001

Place of Origin : Shenzhen ， China

MOQ : 500pcs

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, , Western Union, MoneyGram

Supply Ability : 150K pcs/day

Delivery Time : 7-10 days

Packaging Details : Tray in Carton

Type : RJ45

Application : PCB

Material : PBT PA66 PA46

Pin : 8P8C

Operating temperature : -40℃ to 85℃

Contact Now

5225 Series PBT Unshielded 8P8C 1x5 Multiple Port RJ45 Connector Without Leds

Product Specification:

Specification:

Multiple-port RJ45

 Cross Part NO: 52B-588121X01
Mounting: Thru-hole R/A Samples: Available 2-3 Pcs
Latch: Tab up Files: PDF/3D/ISG/Stp/Step/Datasheet

Product Details:

1. Current Rating 1.5A
2. Voltage Rating 125v
3. Contact Resistance 30milliohm Max
4. Withstand Voltage 1000V AC 50Hz or 60Hz,1MIN.
5. Insulation Resistance 500 MΩ MIN @ 500V DC.
6. Mating/Unmating Force 2.2KG.F MAX.
7. Retention Strength 7.7KG.F MIN Between Jack And Plug
8. Operating Life 750 Cycles MIN.
9. Operation Temperature ﹣40℃ to +85℃
10. Storage Temperature ﹣40℃ to +85℃
11. Housing Material PBT/PA66/PA46
12. Contact Material DiamererI 0.46mm C51000(QSn4-0.3)Phosphor Bronze
13. Contact Mating Area Plating Gold/3u"/6u"/15u"/30u"
14. Shell Material Brass
15. Shell Plating Ni Plating

OEM Services

For high-quality, high reliability and reasonable price RJ45 network connector products,and more than the word’s top 500 OEM manufacturers recognized.

Production Ability

The company’s own injection molding, stamping and automated assembly plant, a professional automated production and testing equipment, the company has established an independent laboratory.

Competitive Price And Service


• More Competitive Price Than Pulse Tyco Halo And Amphenol
• Delivery Time:2-3 Weeks After Orders
• Free Samples Are Available
• Provide New Design For Customer Requirements
• 90% Off Shipping Cost By DHL UPS DEDEX Or TNT

Advantage:

Specializes in the development , design , production and sale of communication network connectors .

14Years Experience

Our company since 2005 RJ45 network connector production in the past 14 years,only focus on RJ45 network connector design and development and production and sales.

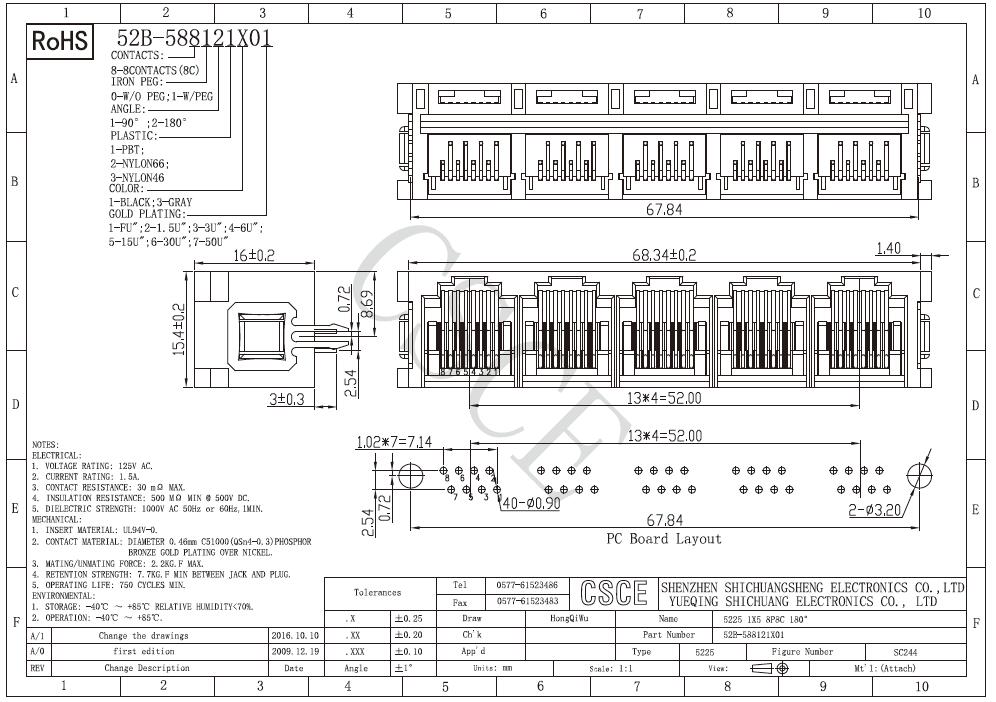

Product Drawing:

5225 Series PBT Unshielded 8P8C 1x5 Multiple Port RJ45 Connector Without Leds
