| 90 Degree RJ45 Jack 10 / 100 Base Customized Color Thru Hole R/A Mounting |
Product Description:
| Withstand Voltage | 1000V AC 50Hz or 60Hz,1MIN. |
| Retention Strength | 7.7KG.F MIN Between Jack And Plug |
| Storage Temperature | ﹣40℃ to +85℃ |
| Voltage Rating | 125v AC |
| Contact Resistance | 30milliohm Max |
| Mating/Unmating Force | 2.2KG.F MAX. |
| Operation Temperature | ﹣40℃ to +85℃ |
| Insulation Resistance | 500 MΩ MIN @ 500V DC. |
| Insert Material | UL94V-0 |
| Contact Material | DiamererI 0.46mm C51000(QSn4-0.3)Phosphor Bronze |
| Operating Life | 750 Cycles MIN. |
| Current Rating | 1.5A |
Product Details:
| Specification: | RJ45 Single Port | Cross Part NO: | 55A-118821X01 |
| Mounting: | Thru-hole R/A | Samples: | Available 2-3 Pcs |
Why choose us
- Have a strong research and development ability for a new product
- Equipment and manufacturing ability for would
- Competitive price , and in time delivery well-selling in both domestic and foreign markets.
- Acquired the ISO9001-2000 quality management system certification , ISO14001 environmental management system and UL certification .
- Reasonable prices, very competitive and reliable.
- Excellent sales team and tech team ready to serve you.
- Fast delivery.
- OEM services with agreed quantity by both parties.
- Specializes in the development , design , production and sale of communication network connectors .
- We hope to make long term business cooperation with all our customers
Main Customers
| Hisense | Skyworth | FOXCONN | JEZETEK | TCL | NEC |
| TENDA | HUMAX | PANASONIC | HUAWEI | CIG | TwoWing |
What's the Price?
Some part's price is unstable according to the market, please feel free to contact us for the Latest and Best price.
What's the Payment Method?
1. TT/LC/DP/DA/Paypal/Western Union/Money Gram
2. The buyer is responsible for all the shipping cost incurred.
3. If you prefer to other payment terms, please contact us.
CSCE Corporate Policy
• The Corporate Goal Is To Achieve The Highest Level Of Customer Satisfaction
Through Continuous Improvements In Quality, Delivery And Service
• CSCE Is Committed To And Expects Quality Performance From Every Employee
• The Company Standard Is Defect-Free Products And Services.
Competitive Price And Service
• Provide New Design For Customer Requirements
• Delivery Time:2-3 Weeks After Orders
• Free Samples Are Available
Features:
1. All materials comply with ROHS
2. High-wearing feature
3. OEM & ODM are both available.
4. Quality Assurance, 36 months warranty.
5. Riveting machine was invented by us.
6.We do lots of research and development in these area, if you meet any difficulties, feel free to contact us.

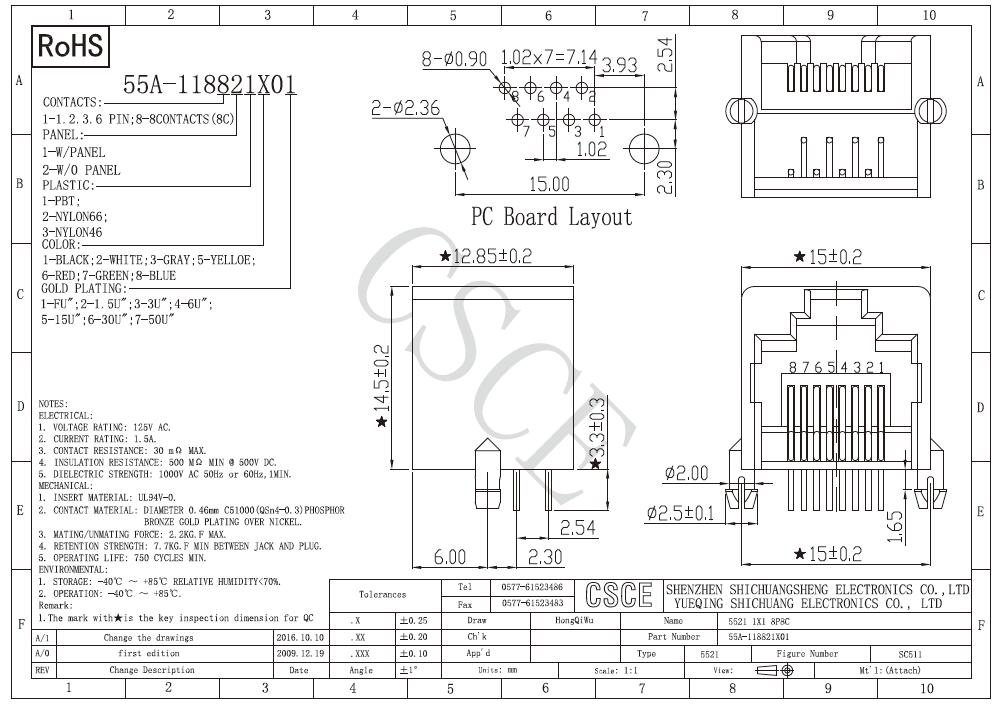

Product Drawing:
Product Tags:
|
|
90 Degree RJ45 Jack 10 / 100 Base Customized Color Thru Hole R/A Mounting Images
|
